Плата разработки IAC-RK3576-KIT
ISP: Dual Image Signal Processors (ISP): up to 16 MP resolution

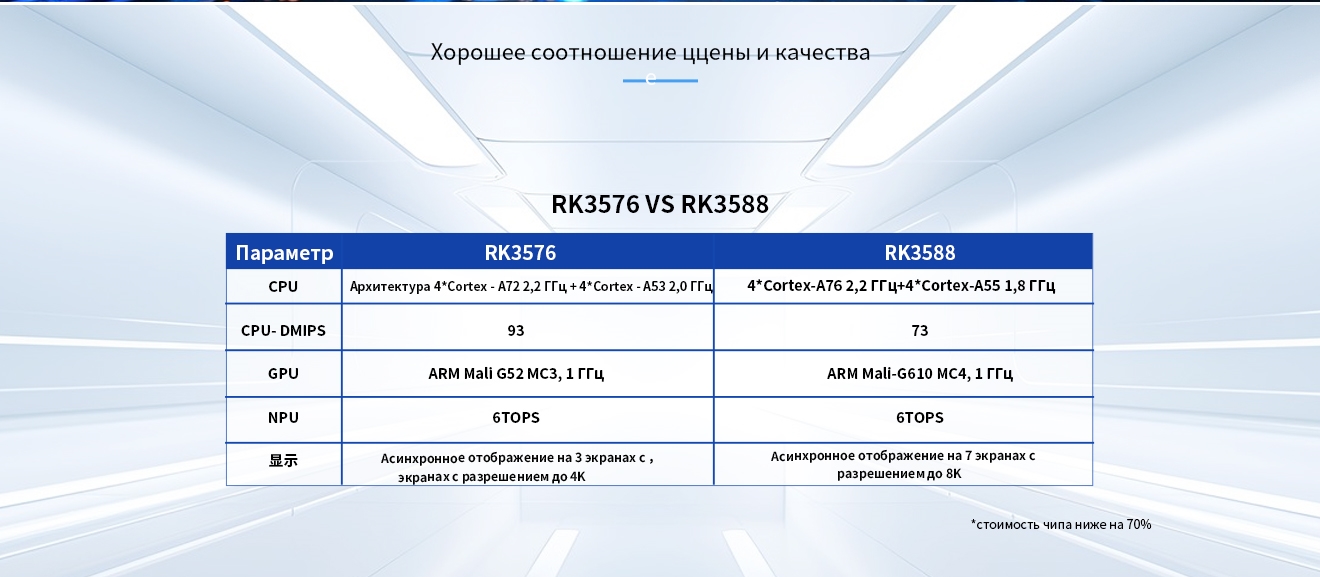

CPU: RockChip RK3576 Processor,Quad ARM® Cortex™-A72 core+ Quad ARM® Cortex™- A53 core, Rk3576 up to 2.2GHz, ARM® Cortex™-A53 up to 2.0GHz
GPU: ARM Mail G52 MC3 OpenGL ES 1.1 2.0 3.2, Vulkan 1.1, Open CL 2.0FP
RAM: 2GB LPDDR4
Flash: 8GB eMMC, expandable 16GB eMMC, 32GB eMMC, optional

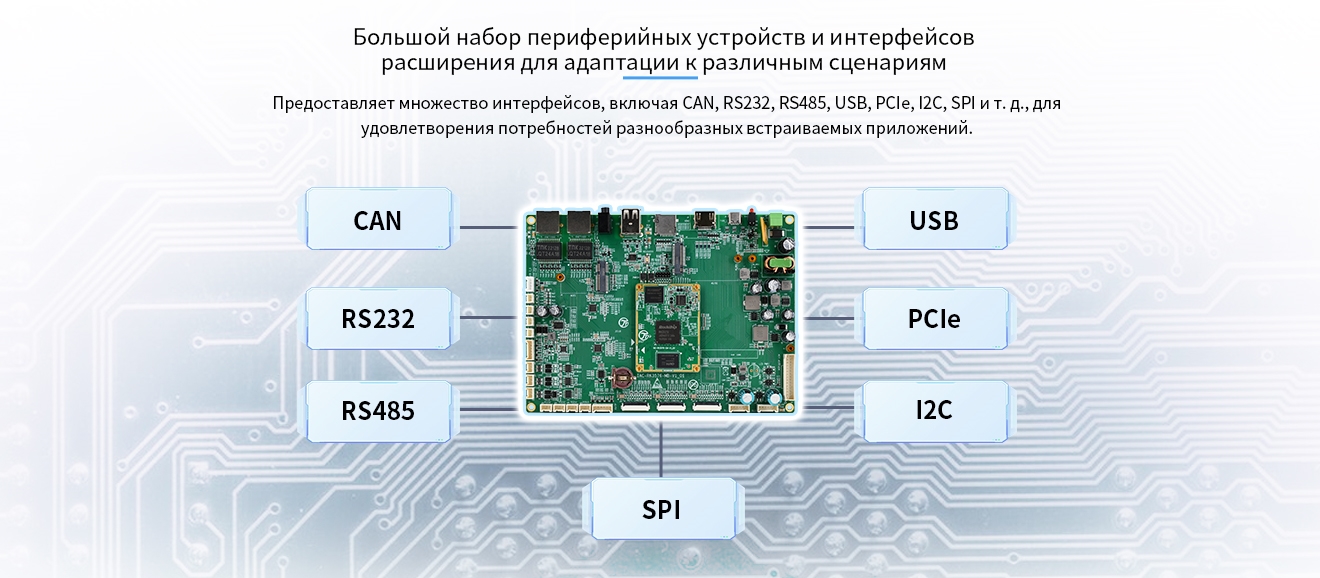

| параметры | |||
|---|---|---|---|
| ISP | Dual Image Signal Processors (ISP): up to 16 MP resolution | CPU | RockChip RK3576 Processor,Quad ARM® Cortex™-A72 core+ Quad ARM® Cortex™- A53 core, Rk3576 up to 2.2GHz, ARM® Cortex™-A53 up to 2.0GHz |
| GPU | ARM Mail G52 MC3 OpenGL ES 1.1 2.0 3.2, Vulkan 1.1, Open CL 2.0FP | RAM | 2GB LPDDR4 |
| Flash | 8GB eMMC, expandable 16GB eMMC, 32GB eMMC, optional | VPU | Support 4K60fps, H.265/4, AVS2, VP9, AV1 video decoding Support 4K60fps, H.265/4 video encoding |
| NPU | Neuro processor unit: up to 6 TOPS for INT8 available | Ethernet | 2-channel network chip adopts RGMII mode to support 10M/100M/1000M Ethernet perfectly |
| UART | 1-ch RS232 debugging serial port 3-ch RS232 serial ports (3 three-wire RS232 serial ports),1-ch RS485 interface | CAN | 2-ch CANFD interfaces |
| USB | 3-ch USB2.0 HOST interface,1-ch USB Type-c port | Display Interface | 1 x 4-channel MIPI_DSI display interface with resolution up to 1920x1200@60,1 x 4-channel eDP display interface with resolution up to 4K@60fps (multiplexed with HDMI),1-ch HDMI display interface (eARC function included), resolution up to 4K@120fps |
| Audio | 2-ch Speaker, Amplifier Output,Dual-channel audio output (headphone socket),2-ch MIC audio inputs | Extension Interface | M.2 E-KEY interface, external WiFi module (PCIE & SDIO),M.2 B-KEY interface, external 5G module, SIM card interface (USB3.0) |
| Storage interface | 1-ch TF card ;1-ch UFS (reserved, not posted by default) | Other | SPI I2C (1.8V) |
| Camera | 3-ch MIPI-CSI (4-channel), support three-way camera input at the same time | Othere equipment | Reset Circuit, Watchdog Circuit, Real Time Clock |
| PMIC | RockChip RK806S Power Management Unit | Power Supply | 9V~32V, default DC_12V |
| Operating System | Linux6.1, Debian12 and Android 14; | Power Consumption | Whole board power consumption 5W (no load) |
| Operating Temperature | 0℃ ~ + 70℃ | Working Humidity | 5% to 95%, non-condensing |
| Storage temperature | 10°C ~ +80℃ | ||
| характеристики | |||
|---|---|---|---|
| J1 | Gigabit Ethernet Interface | J2 | Gigabit Ethernet Interface |
| J3 | M.2 B-KEY socke | J4 | M.2 B-KEY socke |
| J6 | Type-C port | J7 | Dual Layer USB 2.0 Type-A HOST |
| J8 | USB2.0 PHB HOST | J9 | HDMI display interface |
| J10 | 3.3V/5V Jumper | J11 | 3.3V/5V Jumper |
| J12 | MIPI-DSI & eDP Display Interface | J13 | I2C interface (capacitive touch screen) |
| J15 | 5V/12V jumper (LCD backlight) | J16 | LCD Backlight Interface |
| J17 | LCD Backlight Interface | J18 | 5V/12V jumper (LCD backlight) |
| J19 | MIPI-CSI interface | J20 | MIPI-CSI interface |
| J21 | MIPI-CSI interface | J22 | RS485 interface |
| J23 | RS232 interface | J24 | RS232 interface |
| J25 | Debugging serial port (RS232 level) | J26 | RS232 interface |
| J27 | CAN interface | J28 | CAN interface |
| J29 | headphone jack | J30 | MIC Input Connector |
| J31 | Speaker Output Connector | J32 | Speaker Output Connector |
| J33 | TF card slot | J34 | SPI & I2C |
| J35 | DC12V power input | J36 | MIC Input Connector |
| BT1 | RTC Battery | S1 | SIM card slot (back) |
| SW1 | Reset button | SW2 | Recovery Button |
| SW3 | ON/OFF switch | ||
